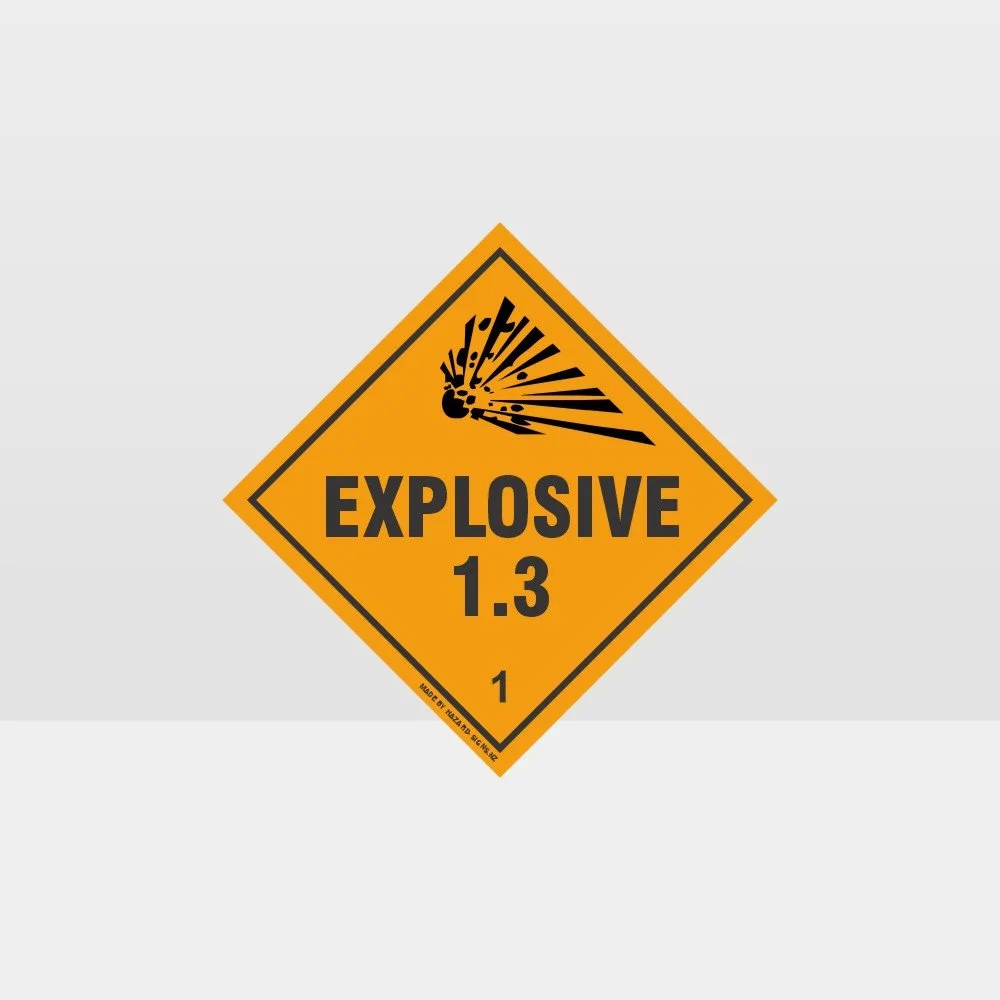

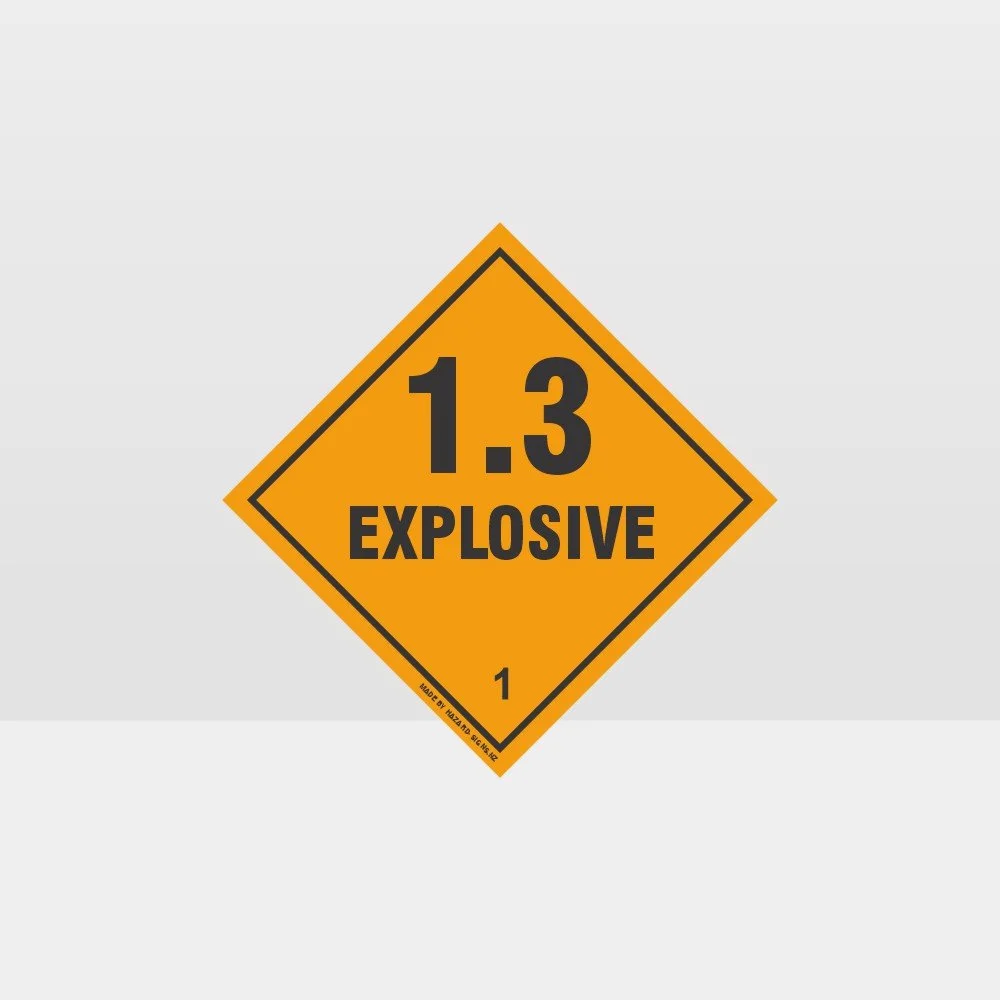

Class 1.3 Explosive Sign

Diamond Shape Hazard Sign – Class 1.3 Explosive Sign

Class 1.3 Explosive Sign – One must caution around Explosive Materials to prevent injury. The symbol in the Hazardous “Class 1.3 Explosive Sign” clearly warns of hazards that may lead to serious injury or accident. Certainly, an explosive material (solid/liquid) is capable of causing damage to the surroundings. Hence, installing a “Class 1.3 Explosive Sign” in a visible place helps in identifying dangerous solids, liquids, or gases. As a result, it helps to keep people, animals, property, and the environment safe from harm.

“Got a bit of bang in your cargo? Check out our Dangerous Goods Class Guide to see how Class 1 stacks up against the others — before things go boom.”

For more information check out these links

• WorkSafe NZ – Hazardous Substances Management
  👉 WorkSafe NZ – Hazardous substances

• EPA NZ – HSNO Act guidance
  👉 EPA NZ – Hazardous Substances and New Organisms (HSNO) Act

• United Nations GHS
  👉 UN – Globally Harmonized System (GHS)

FAQs

1. Why do I need a Class 1.3 Explosive Sign?
   These signs are legally required under NZS 5433 for vehicles, transport containers, and storage areas carrying Class 1.3 explosives.

2. What’s the difference between Class 1.1, 1.2, and 1.3 explosive signs?

   • Class 1.1 → Mass explosion risk

   • Class 1.2 → Projection hazard

   • Class 1.3 → Fire hazard with minor blast or projection

3. What sizes of Class 1.3 Explosive Signs are required?
   Small packages: 120mm.
   General use: 250mm.
   Vehicle placarding: 400mm or 800mm depending on vehicle size.

“Got fire risk but not the full TNT treatment? Check our guide Explosive Classes Explained (1.1–1.6) for the differences and what sign you need.”

How to choose the right mounting options.

Corflute: short term less than 2 years outdoors

Thin PVC: Medium term, more than 2 years

ACM: Long term 5 years or more

Supplied as a sticker:

long term digital print laminated for long term use. With a life of 5 years or more. We use a Hi Tac vinyl which allows it to be applied most surfaces.

Magnetic mounting option for the Class 1.3 Explosive Sign

Flexible, vehicle-grade magnetic placards with the Class 1.3 Explosive Sign printed on premium vinyl, laminated, and mounted to automotive magnetic sheeting. They stick to ferrous steel panels and remove without residue—ideal for vehicles that only carry DG sometimes.

Who they’re for

• Contractors / couriers who transport Dangerous Goods occasionally

• Hire or multi-use vehicles (no permanent signage)

• Sites that swap classes depending on load (quick changeover)

• Size: 250 × 250 mm (meets common road minimums).

• Magnet: vehicle-grade sheet, 0.8–1.0 mm thick (30–40 mil), high-energy.

• Face film: outdoor self-adhesive vinyl + UV laminate (gloss).

• Operating temp: suitable from winter cold to summer heat (typical automotive range).

• Print: high-contrast black/white artwork.

Where they work (and don’t)

• Works on: painted steel panels that are flat, clean, and smooth.

• Doesn’t work on: aluminium, stainless, plastics, composites, heavy body filler; vinyl wraps, ceramic coatings, heavily textured paint.

• If customers have aluminium doors/ute trays, suggest self-adhesive or rigid ACM instead.

Fitment checklist

1. Clean & dry the panel (no wax/polish).

2. Warm, flat magnet—no curl.

3. Apply to flat steel only; press from centre out.

4. Do not bridge panel gaps, ribs or sharp curves.

5. Remove daily to clean/dry both surfaces; store flat.

6. In heavy rain/highway speeds, check edges haven’t lifted.

Care & maintenance

• Remove and wipe after wet weather; store flat (never rolled tight).

• Move position slightly each week to avoid differential fading.

• Avoid use on freshly resprayed paint (allow full cure).

Compliance note

• Magnet is a mounting method. The operator must ensure placards are the correct class, size, and securely affixed for the journey. Some carriers or site rules may require permanent/rigid placards—check your procedure.

For further information go to the Worksafe website https://www.worksafe.govt.nz/topic-and-industry/hazardous-substances/managing/hazardous-substances-signs/

NZS/AS 1319:1994 advocates simplicity and clarity in safety signage. To be effective, they should be easy to read and interpret at a glance.

The Standard is about the use of legible text and appropriate, simple symbols.

By simplifying the message, it reduces the risk of misinterpretation, which increases the chances of the sign’s warning or instruction being followed.

Enhancing the signs visibility through placement and colour

Placement and visibility will play a crucial role in the efficiency of safety signs.

The standard states that signs must be positioned near the hazard they are warning about, which ensures that the safety message is relevant. Also it advocates the use of contrasting colours for the background and lettering. This attention to the colour scheme will increase visibility and readability from a reasonable distance, which ensures the message is accessible.
